Shoji: Stunning Divisions
02 · Partition systems

Shoji

Stunning Divisions

T6-6063 Aluminium Alloy
Profile Material
3.5mm
Wall Thickness
Shoji, Shogun and Suki
Profiles
Overview

Shoji by NUMAEX

SHOJI is the NUMAEX partition system, built on T6-6063 aluminium profiles with a 3.5 mm wall. Lightweight without sacrifice, structurally rigid without visual bulk, and grounded in the principles of wabi-sabi and ma: simplicity, and the beauty of empty space.

Three profile families, Shoji, Shogun and Suki, run as fixed screens, single and synchro sliding partitions, telescopic sliding systems, dual hinge doors and sliding plus swing combinations, manual or motorised, with an intelligent access system where it is wanted. Grid designs Ligne, Quadra, Rise, Arc and ArcPro set the rhythm of the screen.

Infills span clear, textured and patterned glass, Tactile and Numartis, wood, tiles and laminates, with multi-layer glass for insulation and sound where a room needs it. Finishes come in matt, metallic and earthy wood tones. Shoji is specified for villas, double-height residential entries, hotel suites, boardrooms and workplaces where separation and visual continuity must coexist.

Every SHOJI track is engineered around the door it carries. We calibrate gauge, weight and glide per project, so a panel installed today moves the same way on year ten. The track, the channel and the glass are specified as a single component rather than three sourced parts — which is why a SHOJI partition closes silently and never settles.

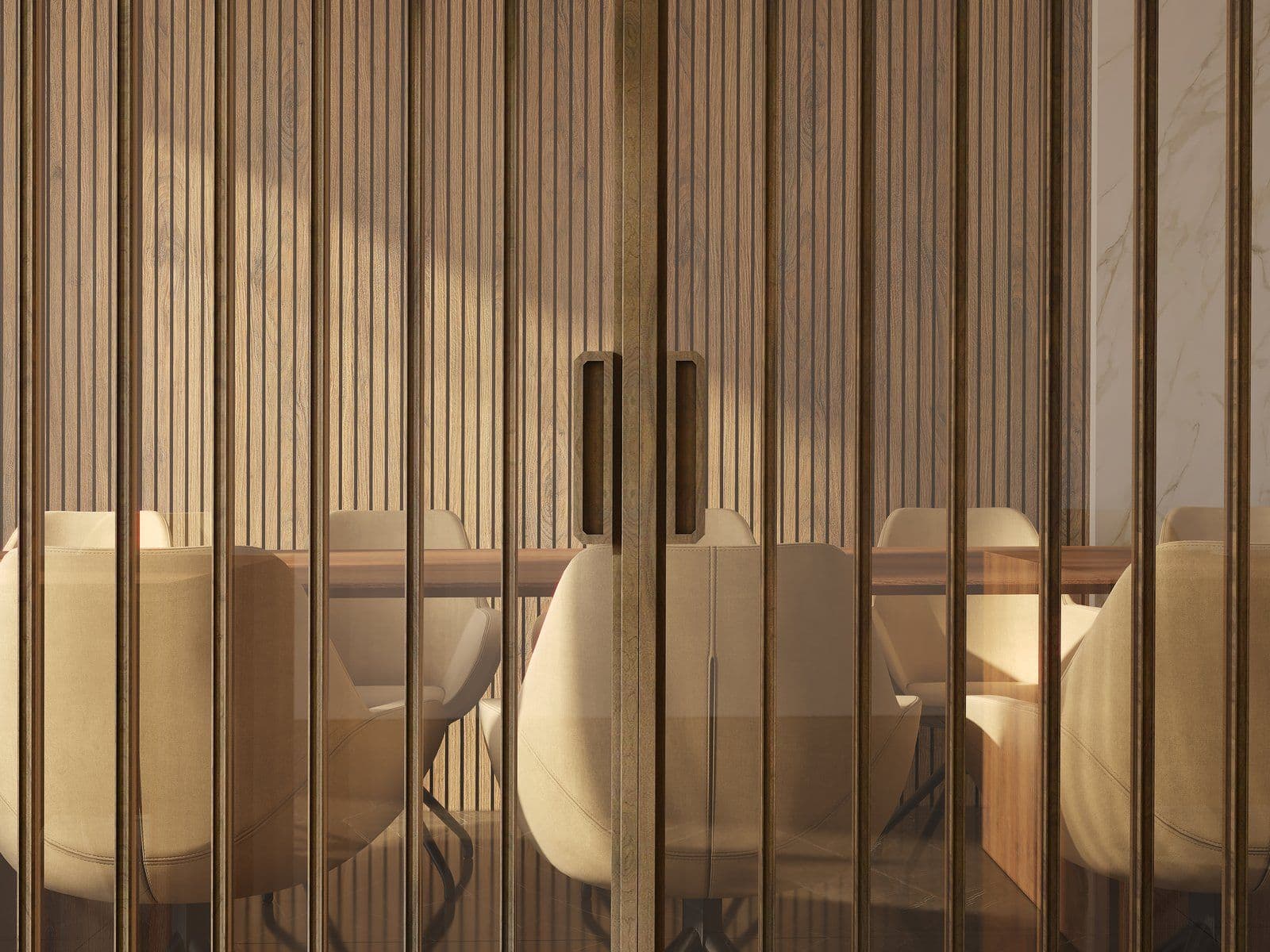

Shoji installed

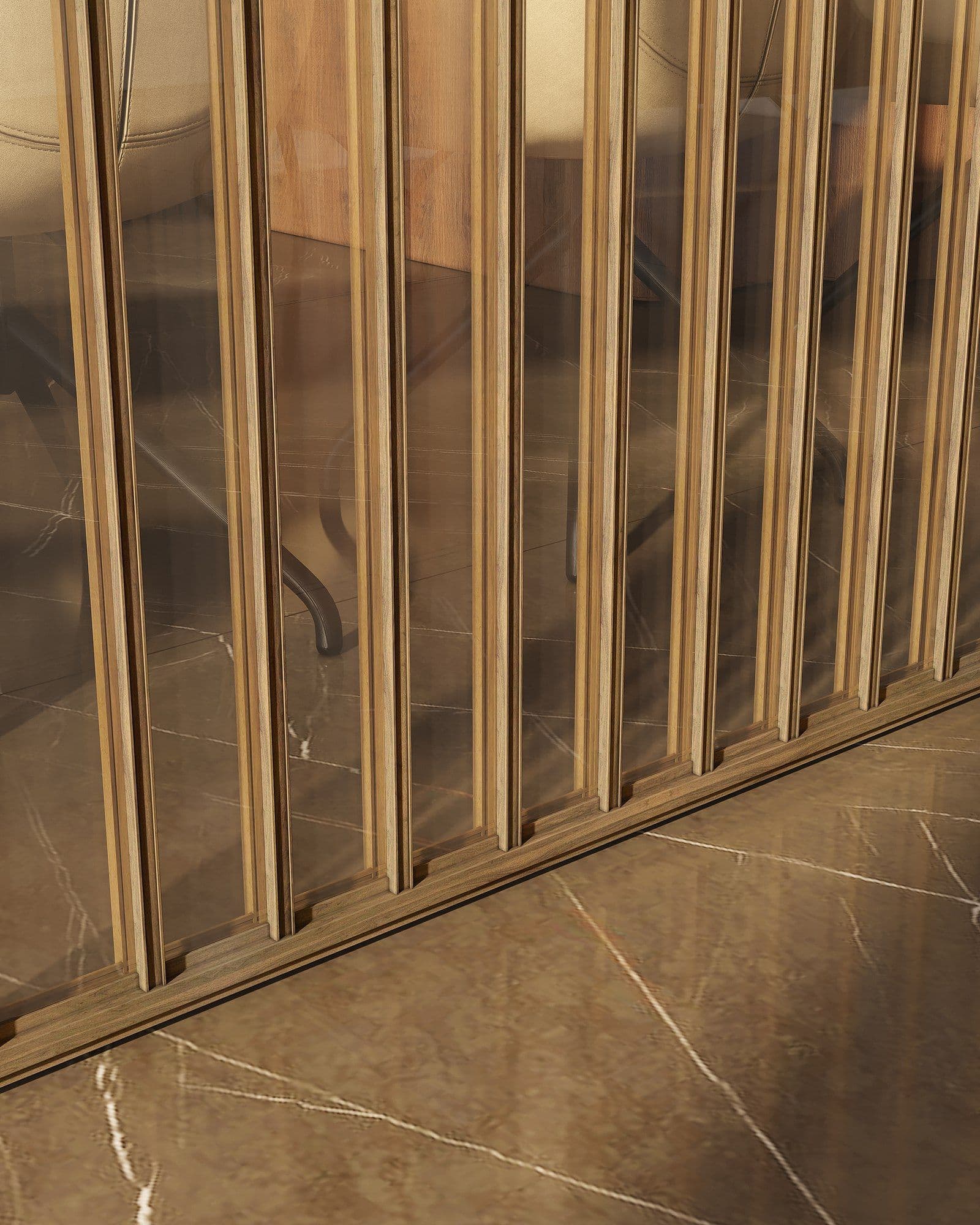

Shoji detail
Shoji detail

Specifications

Profile Material
T6-6063 Aluminium Alloy
Wall Thickness
3.5mm
Profiles
Shoji, Shogun and Suki
Systems
Fixed, single sliding, synchro sliding, telescopic sliding, dual hinge door, single sliding + swing door
Operation
Manual or motorised sliding. Intelligent access system
Grid designs
Ligne, Quadra, Rise, Arc, ArcPro
Max Height
4200mm floor-to-ceiling
Glass Infills
Clear, Textured, Pattern, Tactile, Numartis. Multi-layer glass for insulation and sound
Hardware Systems
Rollers & Tracks (Mantion, France)
Finishes
Matt, metallic and earthy wood tones
Security
Robust locking system. Shatter-resistant glass option on Shogun
Applications
Residential, hospitality, commercial
Variants

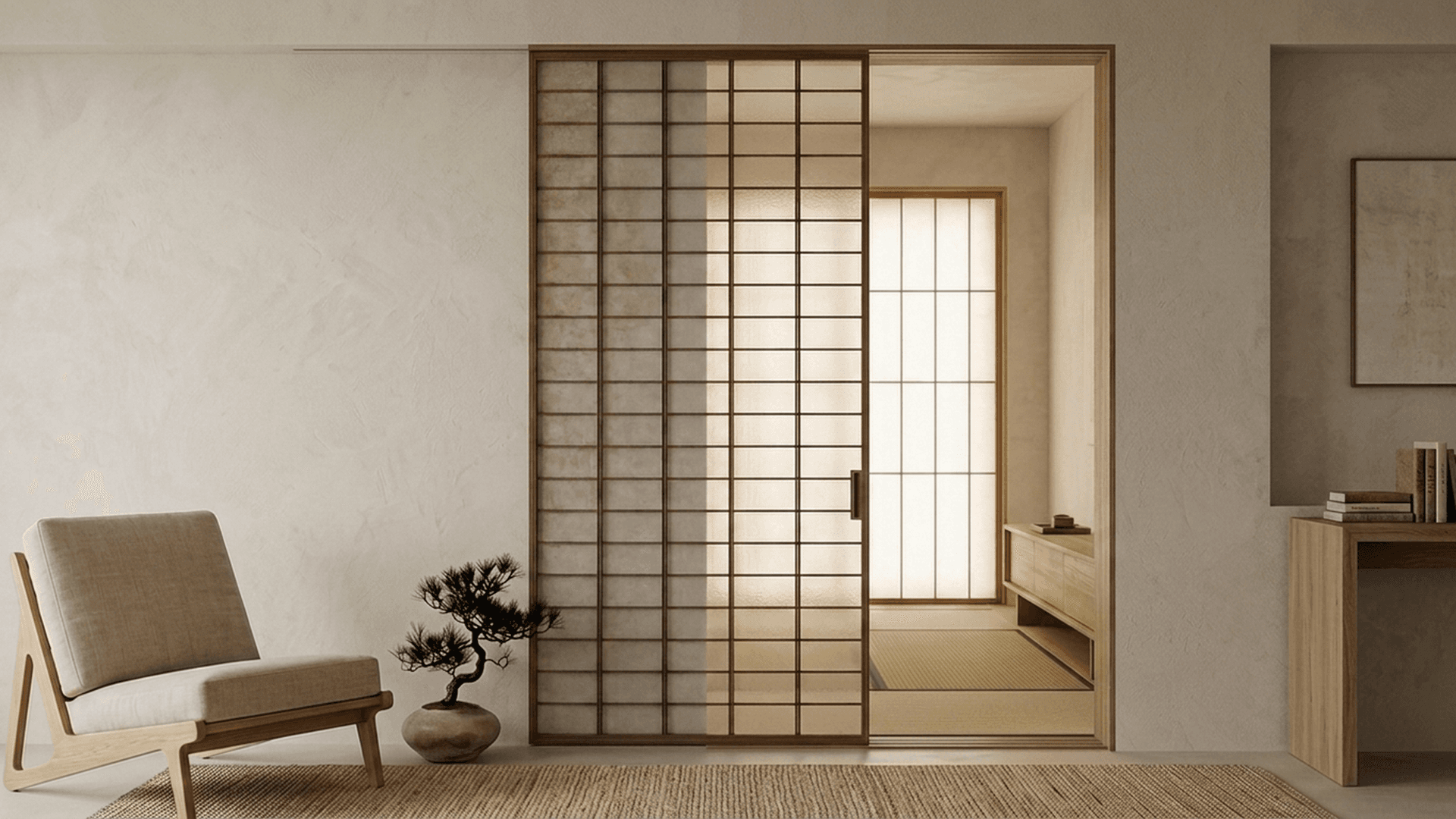

SHOJI Classic
Shoji

SHOJI Classic

Traditional Japanese Proportions

Engineering

Experience in 3D

Rotate each panel to explore it from every angle — frame, leaf, and detail in full three dimensions. Drag to spin, scroll to zoom.

Shogun
Loading Panel
Drag to rotate · Scroll to zoom

Shogun is engineered for tall, heavy glass leaves: whisper-quiet operation, concealed top track, and a profile depth tuned for the largest spans. Rotate to study the leaf, the frame join, and the way the glass meets the structure.

SystemShogun Sliding
Panel TypeSingle Glass Leaf
FrameT6-6063 Aluminium
FinishAnodised / PVD
Engineering

What is inside a Shoji

01
01

T6-6063 Aluminium Profiles

Aerospace-grade aluminium alloy — lightweight, corrosion-resistant, and dimensionally stable across temperature variation.

02
02

3.5 mm Profile Wall Thickness

Engineered for structural rigidity without visual bulk — profiles read as lines, not frames.

03

Concealed Hardware

All hinges and pivot points are flush with the door frame — no exposed mechanism interrupts the surface.

04
04

Three Configuration Modes

Classic, Layered, and Minimal — each optimised for different spatial relationships and plan requirements.

05
05

Glass Infill Compatibility

Accepts clear, frosted, Tactile, and Numartis glass infills — full coordination with the NUMAEX material library.

06
06

Floor-to-Ceiling Capable

Engineered for full-height installations up to 3000 mm — suitable for double-height residential and hospitality lobbies.

Shoji Applications
R
01Shoji

Residential Partitions

Divide living spaces without blocking light; Shoji maintains the visual flow while creating defined zones.

Light held gently

Aluminium replaces timber. Glass replaces paper. The philosophy remains unchanged.

Inspired by the timeless restraint of Japanese architecture, Shoji transforms the traditional screen into a contemporary architectural system. Spaces become connected without surrendering privacy. Light continues its journey while architecture gains rhythm and depth.

System study
Synchro sliding
Profile
Shoji
Glass
8 mm extra clear
Profile finish
Cedar brown

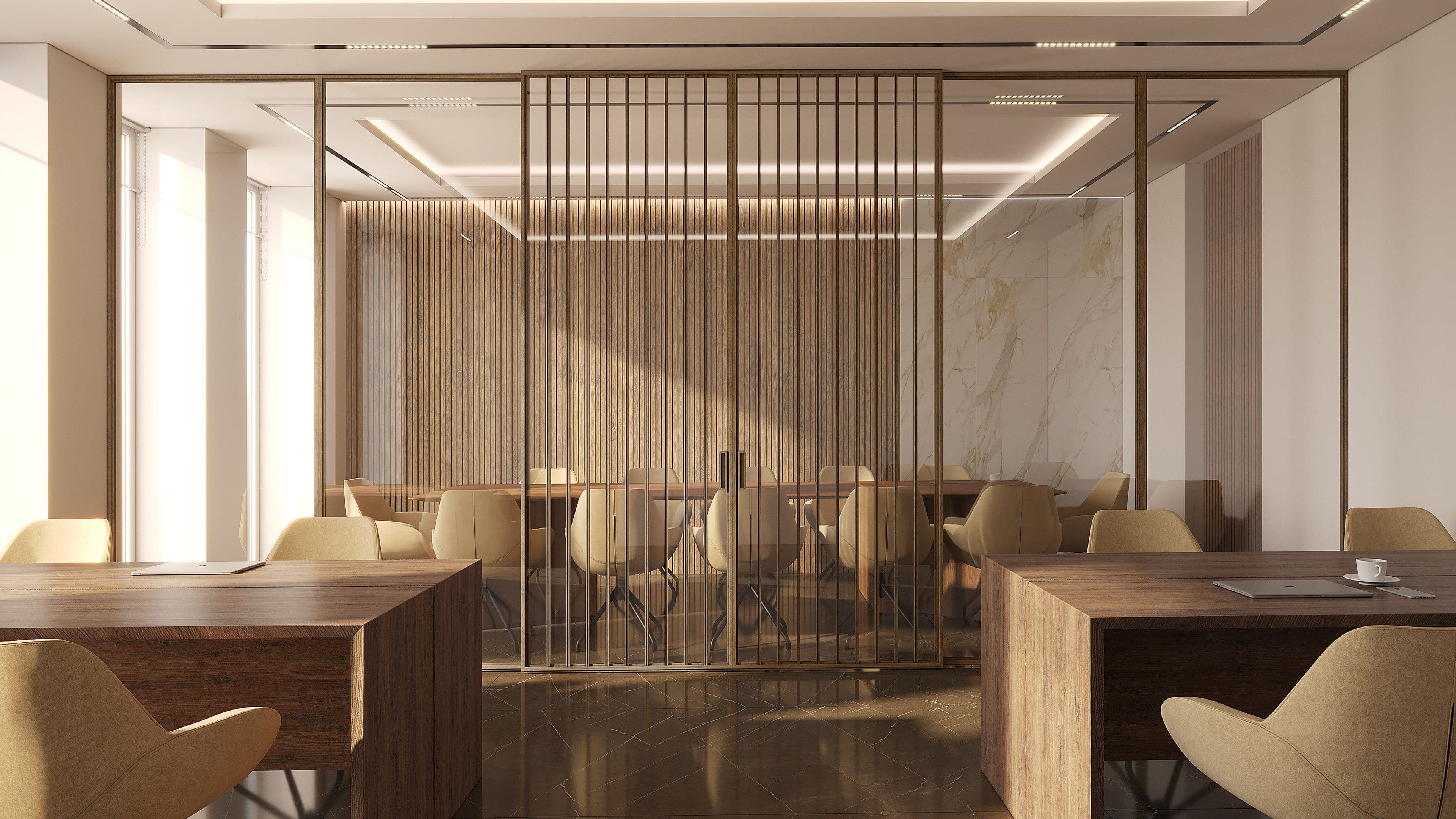

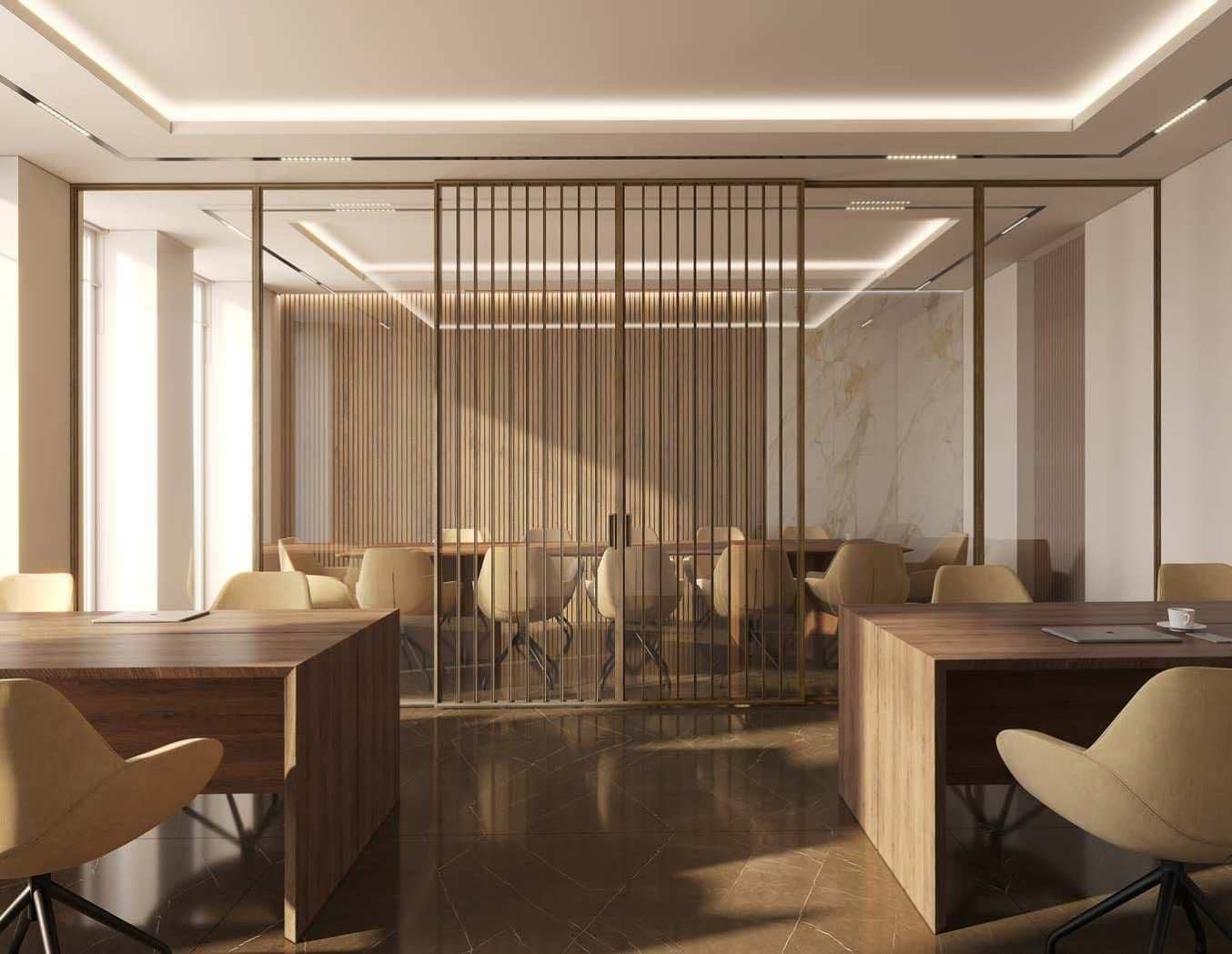

Shoji synchro sliding partition in a boardroom
Enquire about Shoji

Send the room, we will send the options.

A photo or a drawing and the opening size are enough to start. One design liaison replies within one working day.
